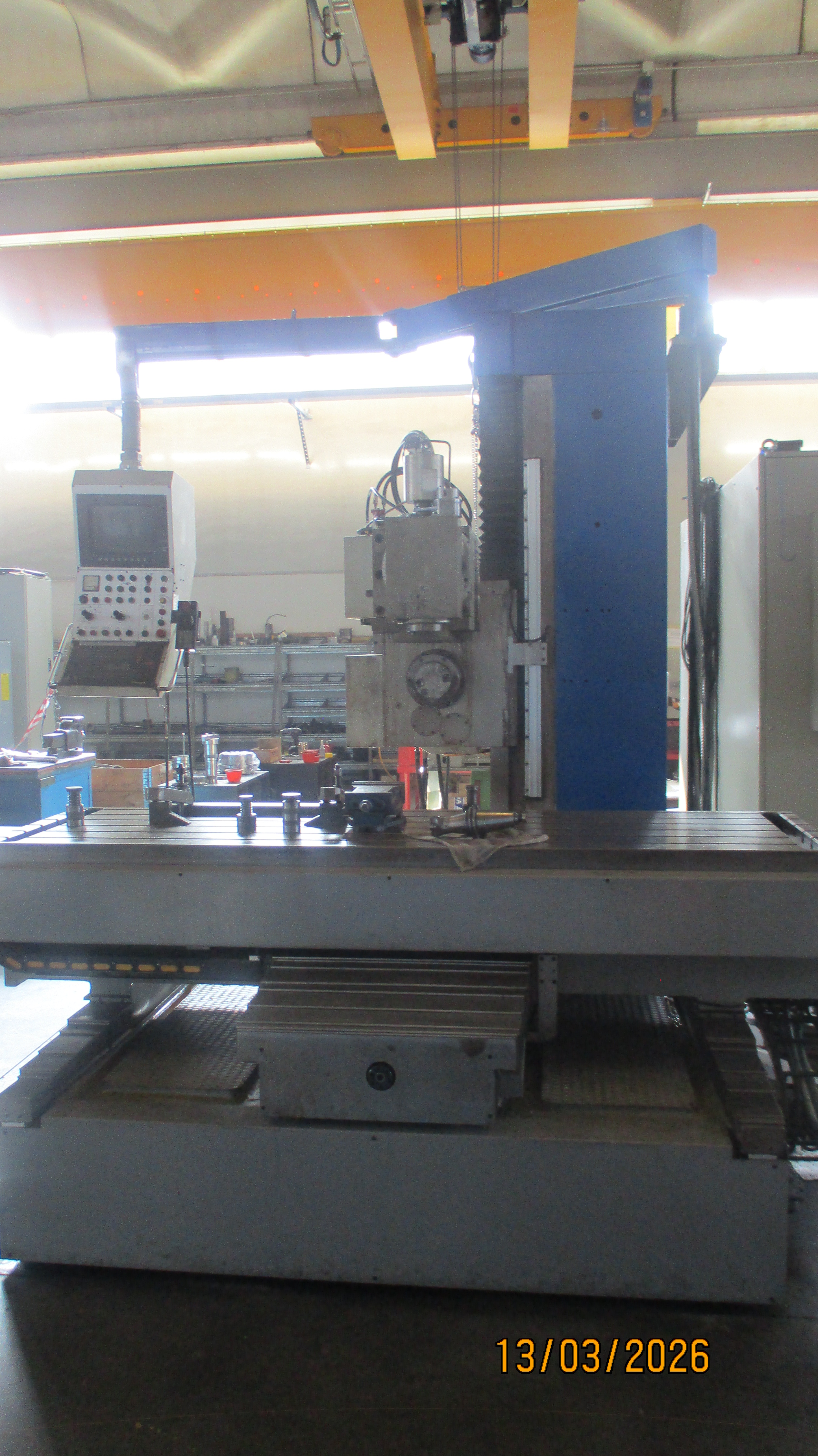

FIL MILLING MACHINE FA200 - YEAR 1995 - IN PREPARATION
| TRAVELS: | |||
| Longitudinal | x | mm | 2.000 |
| Vertical | y | mm | 1.000 |
| Cross travel | w | mm | 850 |
| CNC: | |||
| Heidenhain TNC426 |
TABLE
| Dimensions | 2.400x750 mm |
| Max admitted load | 3.000 Kg |
RAM WITH VERTICAL HEAD
| Taper | ISO 50 DIN69871 |
| Gear box 4 speed range | |
| Rotation speed | 10- 2.000 RPM |
| Engine power | 16,5 KW |
|
|
HORIZONTAL SPINDLE
| Taper | ISO 50 DIN69871 |
| Gear box 4 speed range | |
| Rotation speed | 10- 2.000 RPM |
| Engine power | 16,5 KW |
|
|
